Flat Roof Mounting

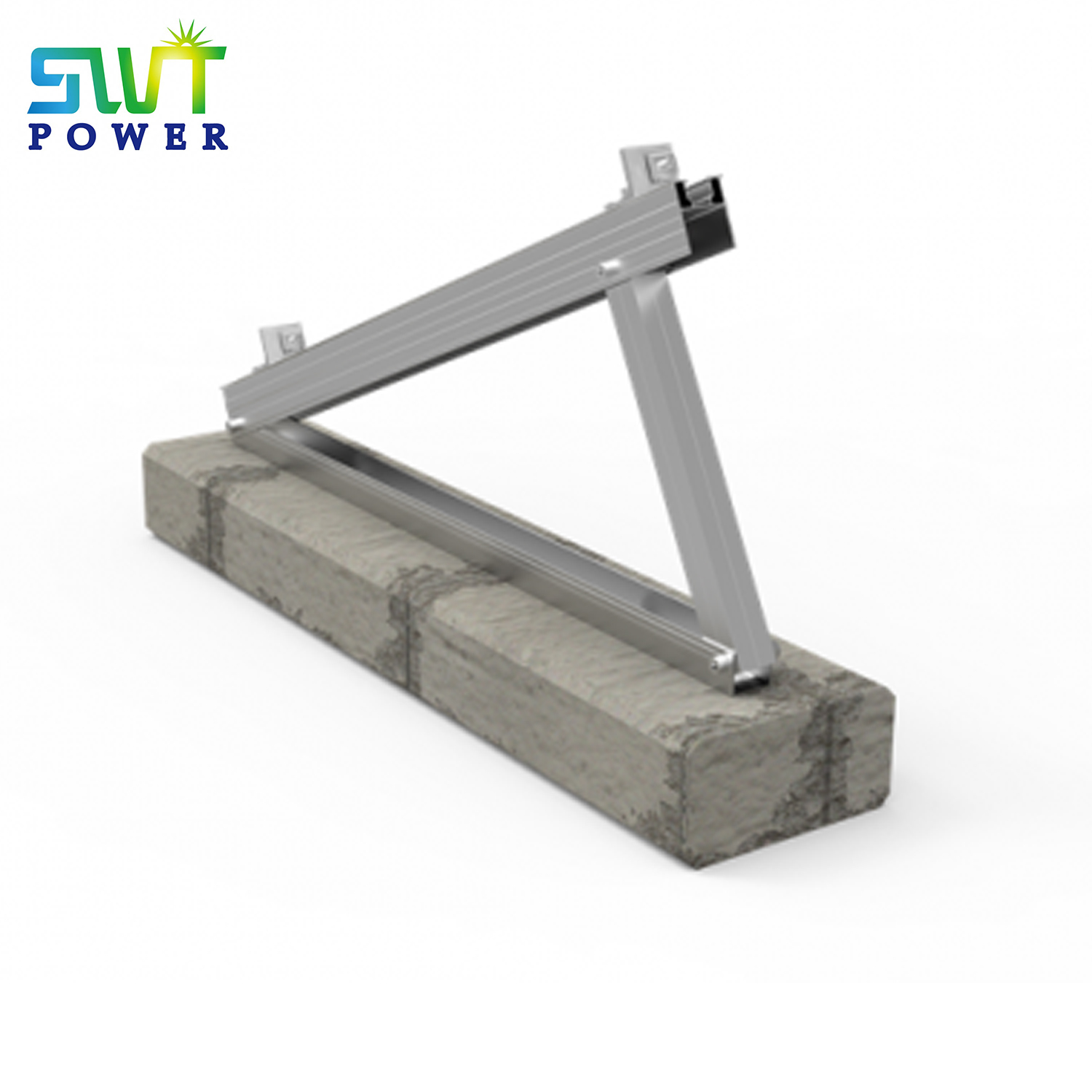

Delta triangle on concrete foundation Fixed tilt flat roof mount

Introduction:
Delta triangle mounting bracket is more versatile than traditional ballast mount on flat roof installation. It can be installed on roof clamp or penetrate into concrete base, metal sheet, or using concrete as ballast. Fold design allows for
INQUIRY
Feature:
Tilt angle: Fixed to project design
Application: Flat Roof, Pitched Roof , Open Terrain
Building height: Up to 20m
Concrete foundations
Wind speed: Up to 60m/s
Module type: Framed, unframed
Material: Anodized aluminum 6005 T5, stainless steel 304, 410
Standard: AS/NZS1170.2:2011 (R2016), JIS C 8955:2017s

Introduction:
Delta triangle mounting bracket is more versatile than traditional ballast mount on flat roof installation. It can be installed on roof clamp or penetrate into concrete base, metal sheet, or using concrete as ballast. Fold design allows for easy transportation, cost-effective warehousing and easy mounting.
