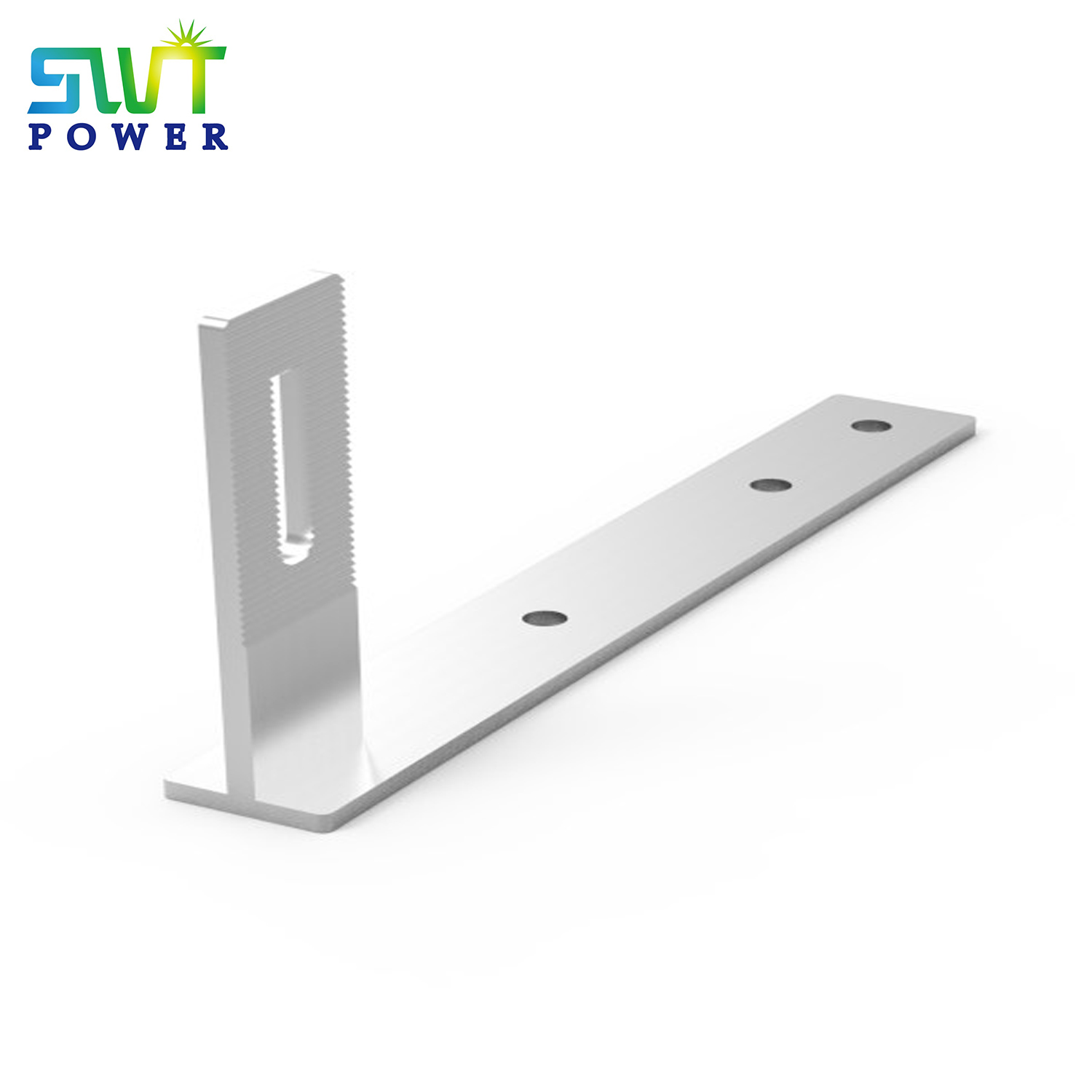

Flat tile hook for portrait rail

Name: Flat tile hook for portrait rail
Brand: SWT Power
Availability: InStock
Rating: 5 (1 reviews)

Introduction:
Tile bracket can minimize penetration on tile roof solar installation, tile hooks goes under the tiles and fix to the substructures, usually wooden batten.Can also customize tile brackets to specific roof tiles. Please refer to below drawin

INQUIRY

Description

Flat tile hook for portrait rail
Feature:
※ Application: Flat tile hook for portrait rail
※ Wind speed: Up to 60m/s
※ Module Orientation: Landscape , Portrait
※ Material: Stainless steel SS304,
2*6.3x80mm wooden screw
※ Standard: AS/NZS1170.2:2011 (R2016), JIS C 8955:2017s
Introduction:
Tile bracket can minimize penetration on tile roof solar installation, tile hooks goes under the tiles and fix to the substructures, usually wooden batten.Can also customize tile brackets to specific roof tiles. Please refer to below drawing and inform values.

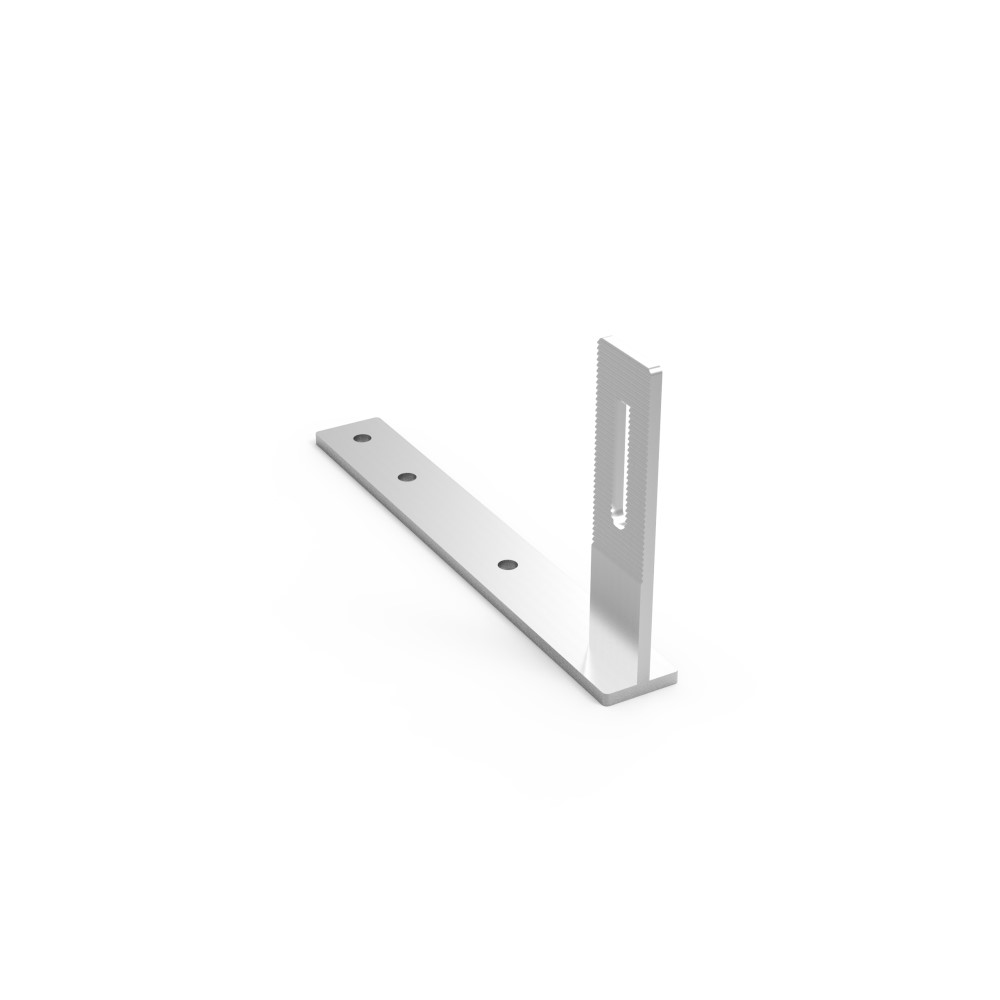

Flat tile hook for portrait rail
