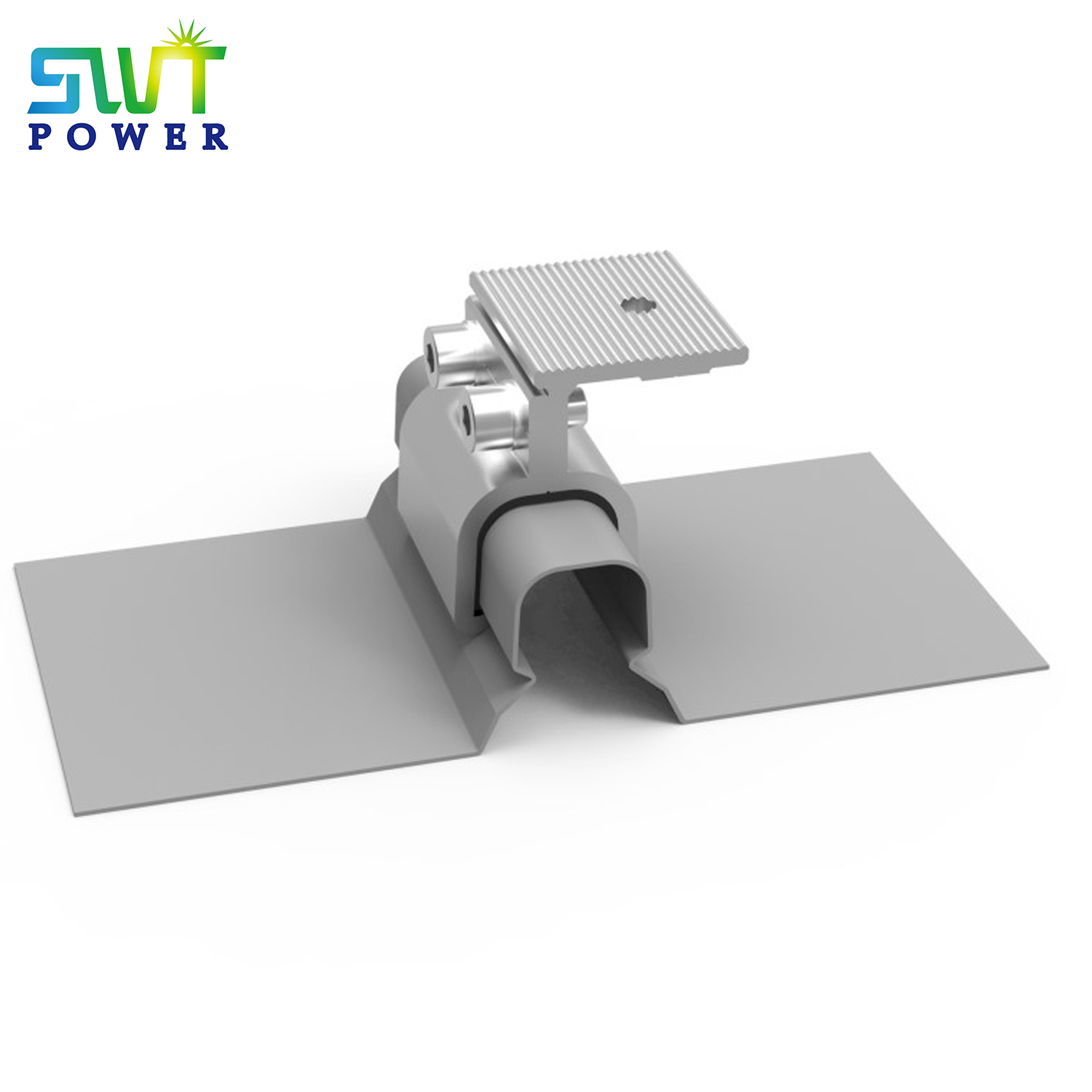

Klip lok 700 clamp standing seam roofing clamp

Name: Klip lok 700 clamp standing seam roofing clamp
Brand: SWT Power
Availability: InStock
Rating: 5 (1 reviews)

Introduction:
Kliplok roof sheet is made by Bluescope steel, which is a company from Australia, over 150years history, widely presence in South East Asian countries.The 406 clamp are simply attached to standing seam panel and provide a secure non-penetra

INQUIRY

Description

Feature:
※ Application: Klip lok 700 clamp
※ Be simply attached to standing seam panel
※ The standing seam clamp would be simply fastened by 2 hex bolts.
※ Improved grabbing part
※ Wider open and easier install.
※ Can use as anchoring point and with bottom mount rail
※ Accessories: 2*M8x25 ss304 bolt, nut, washer
※ Wind speed: Up to 60m/s
※ Module Orientation: Landscape , Portrait
※ Material: Anodized aluminum 6005 T5, stainless steel 304
※ Standard: AS/NZS1170.2:2011 (R2016), JIS C 8955:2017s

Introduction:
Kliplok roof sheet is made by Bluescope steel, which is a company from Australia, over 150years history, widely presence in South East Asian countries.The 406 clamp are simply attached to standing seam panel and provide a secure non-penetrating fastening solution.
Kliplok 700 clamp
T0 identify Kliplok 700 metal roof, can simply measure if distance between seams are 233.33mm.

Klip lok 700 clamp standing seam roofing clamp
